R290 34cc electric ac compressor
R290 34cc 800v electric air conditioning compressor

R290 34CC/800V Electric Compressor (3 GWP, No PFAS)

High Voltage Electric Compressor
Model:
GC34B800P
Refrigerant:
R290 (propane)
Max Cooling Capacity:
6730W
Displacement:
34cm3/r
Introduction
Technical Data
Inquiry
In the rapidly evolving world of electric vehicles, sustainability, efficiency, and safety are becoming the cornerstones of innovation. As automakers and suppliers search for greener, safer, and more energy-efficient e-compressor solutions, Guchen Industry proudly introduces its latest product: the GC34B800P R290 800V Electric Scroll Compressor. This cutting-edge compressor represents a significant leap forward in both environmental responsibility and performance, setting a new benchmark for EV thermal management systems.


800V High-Voltage Platform

The GC34B800P operates at a nominal voltage of 800V, fully compatible with modern high-voltage EV platforms. With an operating voltage range of DC 650-940V, it seamlessly integrates into advanced EV architectures, enabling more efficient power management and smaller wiring harnesses, further reducing vehicle weight and improving overall system efficiency.
Additionally, the integrated permanent magnet synchronous motor and CAN-based speed regulation (1000-6500rpm) provide precise control over compressor operation, optimizing thermal comfort for passengers while minimizing energy usage.
Speed(rpm) 3000 4000 6000
Refrigerating capacity(W) 3380 4536 6730
Power(W) 1200 1586 2415
COP 2.82 2.86 2.79


Compact, Lightweight, and Easy to Install

Weighing only 6.1 kg (including oil), the GC34B800P is designed for easy integration into a wide range of electric vehicles. Its compact scroll design, suction refrigerant cooling, and flexible mounting orientation allow manufacturers to optimize space utilization without compromising performance or safety.


Why R290? The Green Advantage

The GC34B800P distinguishes itself by using R290 (propane) as its refrigerant, a game-changer in the air conditioning industry. R290 is a natural refrigerant, making it an even more environmentally responsible choice. It offers several key advantages over traditional refrigerants such as R134a and R1234yf:
◆ Ultra-Low GWP: R290 has a GWP of only 3, dramatically lower than R134a (GWP of 1430) and even R1234yf (GWP of 4). This minimal environmental impact makes R290 one of the most climate-friendly refrigerants available today, helping automakers meet strict global emission regulations and contributing to global efforts to combat climate change.

◆ Free from PFAS Restrictions: Unlike R1234yf, which belongs to the group of PFAS chemicals currently under increasing regulatory scrutiny due to their persistence in the environment and potential health risks, R290 contains no PFAS components. As a result, R290 avoids the regulatory risks associated with PFAS bans that are being implemented in many countries, ensuring long-term compliance and stability for automakers. In particular, the EU is taking significant steps towards banning PFAS under the REACH regulation. In February 2023, the EU proposed a comprehensive restriction that could phase out thousands of PFAS substances, including those used in certain refrigerants like R1234yf. This regulatory development highlights the growing global momentum to eliminate PFAS, further reinforcing the long-term advantages of adopting PFAS-free solutions like R290.

◆ Superior Energy Efficiency: Thanks to its excellent thermodynamic properties, R290 enables the GC34B800P to deliver high cooling capacity with lower energy consumption. During performance tests, the compressor achieved a refrigerating capacity of 6730W at 6000 rpm with a COP of 2.79. This superior efficiency translates into extended driving range for EVs, reduced energy demands, and lower operating costs.

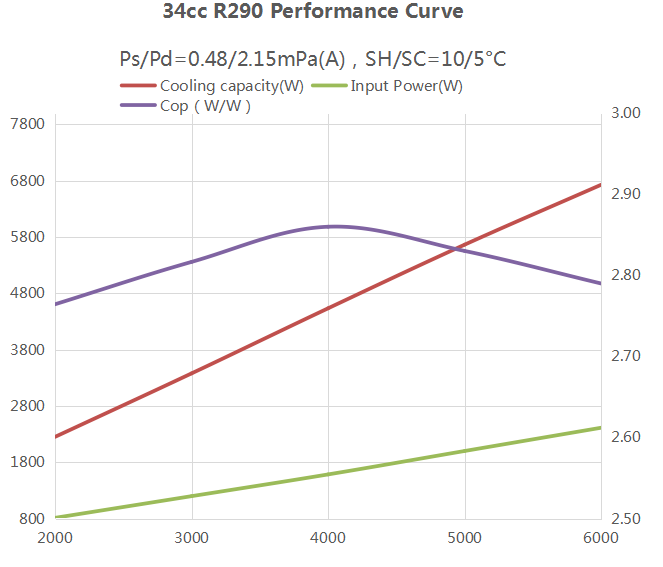

Performance curve of R290 34cc 800v electric compressor
◆ Environmental Compliance and Future-Proofing: As global regulations increasingly phase down the use of high-GWP refrigerants, R290 positions automakers ahead of the curve. Compliance with stringent international standards not only reduces environmental liability but also ensures long-term availability and cost stability for refrigerant supply chains.


A Responsible Choice for the Future

The automotive industry is facing unprecedented pressure to adopt technologies that minimize environmental impact while maximizing performance and customer satisfaction. The R290 Electric Compressor is the responsible choice that meets and exceeds these demands.
By selecting R290, manufacturers demonstrate their commitment to sustainability, reduce their carbon footprint, and gain a competitive edge in an increasingly eco-conscious marketplace.

Contact us today to learn more about how the GC34B800P R290 800V Electric Compressor can enhance your electric vehicle platform while contributing to a cleaner, greener future.


Model GC34B800P
Refrigerant R290 (propane)
Displacement 34cm3/r
Voltage 800V (DC650-940V)
Speed Range 1000-6500rpm
Rated Speed 6000rpm
Lubricating oil POE68H/100ml
IP Degree IP67
Control Voltage DC12V/24V
Speed Regulation CAN
Storage Temp. -40℃~+120℃
Usage Temp. -20℃~+70℃
Total Weight (with oil) 6.1±0.2kg
