GC34A540 Electric Truck AC Compressor

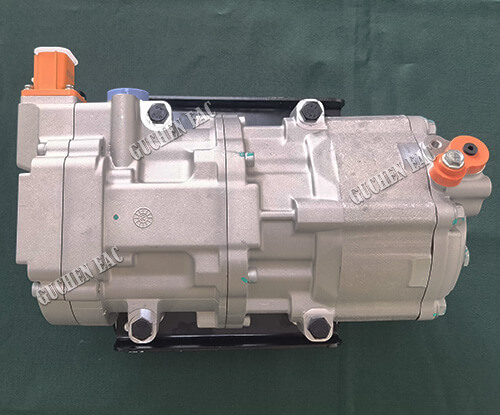

540V Electric Truck AC Compressor

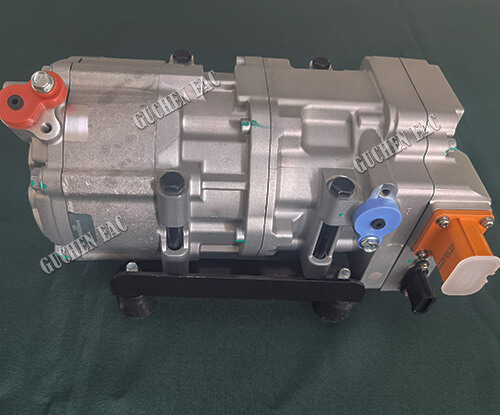

electric ac compressor for trucks

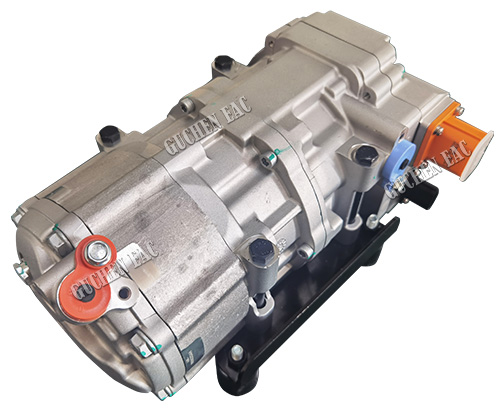

34cc/540V Electric Truck AC Compressor

High Voltage Electric Compressor
Model:
GC34A540
Displacement:
34cc
Voltage:
DC540V/DC400-750V
Refrigerant:
R134a
Introduction
Configurations
Inquiry
The GC34A540 is an electric truck compressor with 34cc displacement. It is a DC540V electric compressor, and best suitable for all-electric trucks, vans and other vehicles.

It comes with a 1-year manufacturer’s warranty. If you have any problems with your unit within that time period, we'll be happy to help you get it back up and running!

HV Connector in 540v compressor


The Main Benefits of Using GC34A540 All Electric Truck AC Compressor


◆ Wide Allowable Operating Temperature Range

High temperature resistance: It works in low temperature of -40°C to 90°C ambient temperature without any damage to the electric motor at all times. The 540VDC electric truck ac compressor can be used in different climatic conditions such as arid desert, arctic weather and tropical climate.

◆ The Most Advanced Inverter Technology

The electric compressor uses the inverter technology to convert DC power into AC power, which can be used to drive the electric motor directly.

◆ High Efficient BLDC Electric Motor

The high efficiency motor of the 540VDC electric truck ac compressor can run at the highest speed of 6500RPM. The electric truck air conditioner with this kind of compressors is suitable for long distance driving on highways or roads.

◆ Good Quality and High Strength

The GC34A540 has a net weight 6.1kgs. It is made of aluminum alloy which makes it durable and lightweight as well. The peak current is up to 8A and the starting current is about 5A, which helps reduce the load on the battery when starting the engine.

◆ Compressor Protection System

It features a built-in overload protection system with thermal protection, under voltage, over voltage and over current protection. This feature helps to prevent possible damage caused by overloading or overheating during operation, which makes it safe and reliable.

Configuration of GC34A540 Electric Compressor


Item Parameter
Displacement 34cm3/r
Speed range 1000~6500rpm
Max. cooling capacity 6175W
Max. input power 2820W
 Refrigerant   R134a
Oil RL68H (POE Oil)
HV Voltage range DC400~750V
LV voltage range DC9~32V
Control mode PWM/CAN
Protective function Undervoltage, overvoltage, overcurrent, overtemperature
Protection level IP67
Working temperature -40~90℃
Storage temperature -40~120℃
Net weight 6.1kg


Cooling Capacity / Input Power / EER

GC34A540 Model
Speed 3000 RPM 4000 RPM 6000 RPM
Cooling capacity(W) 2950 4000 5900
Input power(W) 1360 1820 2700
EER 2.17 2.2 2.18
