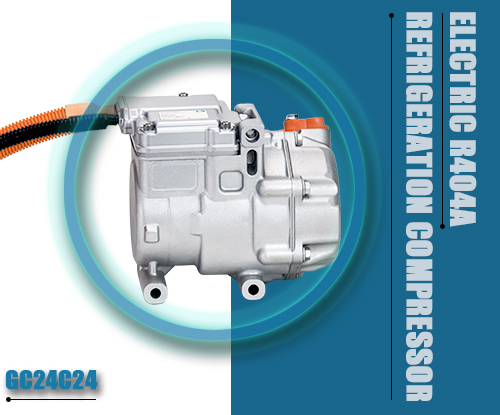

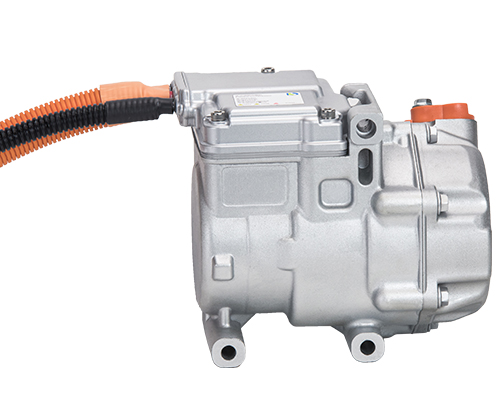

Guchen Industry offers the 24cc/24V-144V Electric R404a & R452a scroll compressor, designed to provide efficient and reliable cooling for refrigerated vehicles. With the flexibility to use both R404a and R452a refrigerants, this compressor is an ideal choice for businesses seeking a high-performance solution for transporting perishable goods while also considering environmental sustainability.
Key Features:
1. Wide Voltage Range
The 24cc/24V-144V compressor operates across a flexible voltage range of 20V to 180V, offering compatibility with a variety of electric vehicle systems. This versatile design makes it suitable for diverse refrigerated vehicle platforms, including electric trucks, vans, and specialized transport.
2. High Efficiency
Optimized for the refrigeration of perishable goods, the 24cc compressor delivers excellent cooling performance, maximizing energy efficiency while reducing operational costs. It ensures consistent temperature control in challenging environments.
3. Quiet Operation
Designed with low noise emission in mind, the compressor operates quietly, providing a more comfortable driving experience for operators while minimizing disruption during long trips.
4. Environmentally Friendly
With energy efficiency and a focus on reduced carbon footprints, this compressor contributes to the sustainability of refrigerated transportation, helping meet global environmental standards.
Applications:
◆ Refrigerated Trucks: Perfect for large-scale transport of perishable goods, from food to pharmaceuticals, ensuring consistent temperature control over long distances.
◆ Delivery Vans: Ideal for urban and suburban delivery vehicles, offering energy-efficient cooling for smaller, more agile fleets.
◆ Cold Chain Logistics: Provides a reliable and cost-effective solution for temperature-sensitive shipments, helping maintain the integrity of goods in transit.
Technical Specifications:
◆ Model:
24cc 24V Electric R404a & R452a Refrigeration Compressor
◆ Rated Voltage: DC24V
◆ Voltage Range: 20V to 31V DC
◆ Refrigerants: R404a (standard) & R452a (optional, for greener refrigerant solutions)
◆ Max Cooling Capacity: 3.84kW
◆ Max Rotation Speed: 5000rpm
◆ Control Methods: 3-speed, PWM, CAN (customer preference)
◆ Weight: Compact and lightweight for easy integration into refrigerated vehicle systems
◆ Power Input: Energy-efficient motor reduces power consumption
The 24cc 24V Electric R404a Compressor from Guchen Industry offers superior performance, flexibility, and sustainability for refrigerated transport. With the option to use either R404a or the more eco-friendly R452a refrigerant, this
electric refrigeration compressor is a versatile choice for businesses looking to reduce their environmental impact while maintaining top-tier refrigeration performance. Choose Guchen Industry for reliable, energy-efficient, and environmentally friendly refrigeration solutions for your fleet.
24CC Series--Available Offerings:
| Model |
Rated Voltage |
Voltage Range |
Control Method |
Cooling Capacity |
| GC24C24 |
24V |
20-31V |
3 Speed, PWM, CAN |
2000rpm：1420W
3000rpm：2210W
4000rpm：3020W
5000rpm：3840W
6000rpm：4660W |
| GC24C48 |
48V |
35-65V |
| GC24C60 |
60V/72V/80V |
40-95V |
| GC24C96 |
96V |
60-125V |
| GC24C144 |
144V |
101-180V |
| GC24C312 |
312V |
200-410V |
